page 7

MODELER'S SANDING BOX
EXPLODED VIEW

This is an image of the CG prototype of the modeler's sanding box.

It illustrates all of the components, their approximate spatial relations to each other (except for the baffle and work surface) and is to scale. The baffle has been tilted toward the camera to show its variable profile.



sanding box CG exploded view

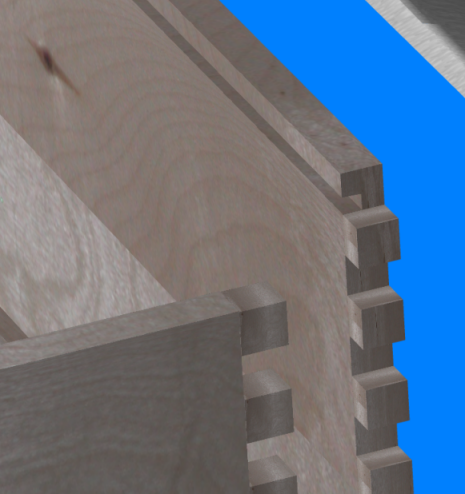

This CG image illustrates a dado slot in one of the side pieces.
There are slots in both sides and the one endpiece without the hole.
dado closeup
